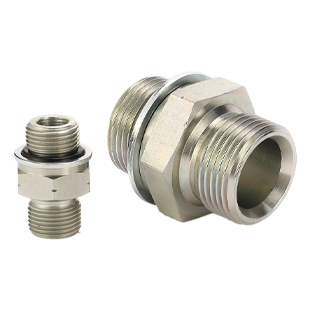

ZM-1BG

Download brochure

Model : Adapters

Brand:ZMTE

BSP MALE DOUBLE USE FOR60°, CONE SEAT ORBONDED SEAL/BSP MALE O-RING.



代号PART NO. 螺纹THREAD O形圈O-RING 尺寸 DIMENSIONS
E F F端 A B L S1
1BG-02 G1/8" X28 G1/8" X28 O011 10 9.5 27 14
1BG-04 G1/4" X19 G1/4" X19 O111 12 11 31 19
1BG-04-06 G1/4" X19 G3/8" X19 O113 12 11.5 32 22
1BG-06 G3/8" X19 G3/8" X19 O113 13.5 11.5 33 22
1BG-06-04 G3/8" X19 G1/4" X19 O111 13.5 11 32.5 22
1BG-08 G1/2" X14 G1/2" X14 O115 16 14 41 27
1BG-08-06 G1/2" X14 G3/8" X19 O113 16 11.5 36 27
1BG-08-12 G1/2" X14 G3/4" X14 O119 16 15.5 45.5 32
1BG-10-08 G5/8" X14 G1/2" X14 O115 17.5 14 44.5 30
1BG-12 G3/4"X14 G3/4" X14 O119 18.5 15.5 46 32
1BG-12-08 G3/4" X14 G1/2" X14 O115 18.5 14 45.5 32
1BG-16-08 G1" X11 G1/2" X14 O115 20.5 14 50.5 41
1BG-16 G1" X11 G1" X11 O217 20.5 18 53 41
1BG-16-12 G1" X11 G3/4" X14 O119 20.5 15.5 52 41
1BG-20 G1.1/4" X11 G1.1/4" X11 O222 20.5 20 58.5 50
1BG-24 G1.1/2" X11 G1.1/2X11 O224 23 21.5 62.5 55






Fend isconnected with DIN 3852 port.

Welcome to download our catalog for you reference.
