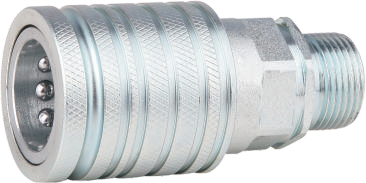

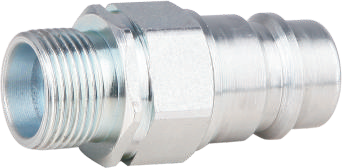

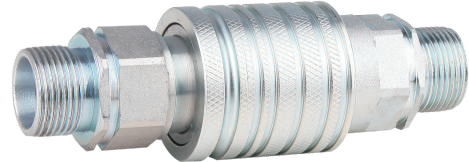

Model : PUSH AND PULLTYPE HYDRAULIC QUICK COUPLING
1.Double acting sleeve for one handed push-to-Connect operation when coupler is clamp or bulkhead mounted.
2.Poppet valves available to prevent uncoupled leakage.
3.Poppet valves open automatically when coupled, within rated working pressure,to keep the flow expeditely.
4.Critical parts are hardened for durability.
5.Dependable ball-locking mechanism holds the mating halves together.
6.Socket and plug are precision machined from solid bar stoCk.
7.ZM-S5 series conforms to the standard of ISO5675.
8.Compatible with PAPKER4250 Series,FASTERCPV-CNV Series.
Applications: The ZM-S5 Series brings to the industry a proven design for use on construction equipment, forestry equipment agricultural machinery, and oil tools.
Welcome to download our catalog for your reference.
