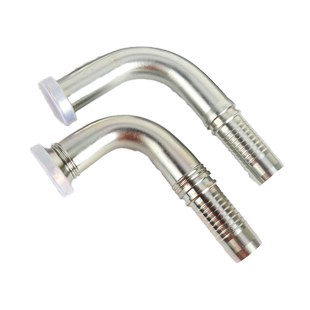

Model : 90° SAE FLANGE-87391

Brand:ZMTE

Two piece fitting

90° SAE FLANGE-87391

ISO 12151-3-SAE J516, 90° SAE FLANGE 3000 PSl

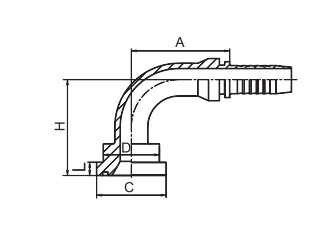

代号PARTNO. 法兰型号FLANGE SIZE 软管 HOSE BORE 尺寸 DIMENSIONS
公称内径 DN 标号 DASH A C D H L
87391-08-08 1/2" 12 8 41 30.2 24 47 6.73
87391-12-08 3/4" 12 8 41 38.1 31.7 48 6.73
87391-12-10 3/J4" 16 10 56 38.1 31.7 52.5 6.73
87391-12-12 3/4" 20 12 66.2 38.1 31.7 62 6.73
87391-12-12(H100) 3/J4" 20 12 65.5 38.1 32 100 6.73
87391-12-12(H127) 3/4" 20 12 65.5 38.1 32 127 6.73
87391-12-12(H150) 3/4" 20 12 65.5 38.1 32 150 6.73
87391-12-16 3/4" 25 16 76.7 38.1 31.7 67.5 6.73
87391-16-12 1" 20 12 65.5 44.4 38 62 8
87391-16-16 1" 25 16 76.7 44.4 38 67.5 8
87391-16-16(H100) 1" 25 16 76.7 44.4 38 100 8
87391-16-16(H127) 1" 25 16 76.7 44.4 38 127 8
87391-16-16(H150) 1" 25 16 76.7 44.4 38 150 8
87391-16-20 1” 32 20 91.5 44.4 38 78.5 8
87391-20-16 1.1/4" 25 16 76.7 50.8 43 67.5 8
87391-20-20 1.1/4 32 20 91.5 50.8 43 78.5 8
87391-20-20(H100) 1.1/a" 32 20 91.5 50.8 43 100 8
87391-20-20(H127) 1.1/4" 32 20 91.5 50.8 43 127 8
87391-20-20(H150) 1.1/4" 32 20 91.5 50.8 43 150 8
87391-20-24 1.1/a" 40 24 107 50.8 43 78.5 8
87391-24-20 1.1/2" 32 20 91.5 60.3 50 80.5 8
87391-24-24 1.1/2" 40 24 109.4 60.3 50 94 8
87391-24-24(H127) 1.1/2" 40 24 109.4 60.3 50 127 8
87391-32-24 2" 40 24 109.4 71.4 62 94 9.53
87391-32-32 2" 50 32 131.8 71.4 62 114.3 9.53
87391-40-32 2.1/2" 50 32 131.8 84.1 74.4 116.3 9.53




Note: 1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is87392-xX-xx.
