Model : Adapters
Brand：ZMTE

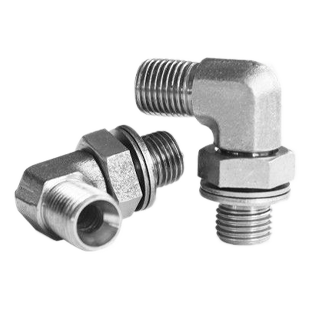

90° ELBOW BSP MALE 60°SEAT/BSP MALE O-RING ADJUSTABLE STUD END
| 代号PARTNO. | 螺纹THREAD O形圈O-RING | 尺寸 DIMENSIONS | |||||

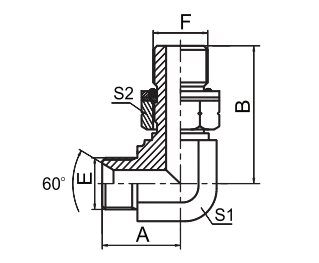

| E | F | F端 | A | B | S1 | S2 | |
| 1BG9-04OG | G1/4" X19 | G1/4" X19 | O111 | 25 | 31.5 | 14 | 19 |
| 1BG9-04-06OG | G1/4 X19 | G3/8"X19 | O113 | 26.5 | 36.8 | 16 | 22 |
| 1BG9-06OG | G3/8" X19 | G3/8" X19 | O113 | 28 | 36.8 | 16 | 22 |
| 1BG9-06-08OG | G3/8"X19 | G1/2 X14 | O115 | 31 | 43.2 | 22 | 27 |
| 1BG9-08OG | G1/2" X14 | G1/2" X14 | O115 | 34.5 | 43.2 | 22 | 27 |
| 1BG9-12OG | G3/4"X14 | G3/4"X14 | O119 | 40 | 49.3 | 27 | 32 |
| 1BG9-12-16OG | G3/4"X14 | G1"X11 | O217 | 45 | 53 | 33 | 41 |
| 1BG9-16OG | G1"X11 | G1"X11 | O217 | 46 | 53 | 33 | 41 |
| 1BG9-20-16OG | G1.1/4" X11 | G1" X11 | O217 | 50.5 | 58 | 41 | 41 |
| 1BG9-20OG | G1.1/4" X11 | G1.1/4" X11 | 222 | 51.5 | 58 | 41 | 50 |
| 1BG9-24OG | G1.1/2" X11 | G1.1/2" X11 | O224 | 58.5 | 63 | 48 | 55 |
Note:Fend isconnected with DIN3852 port.
