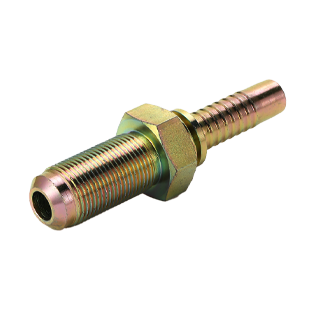

Model : METRIC MALE 90° CONE -10811L
Brand：ZMTE

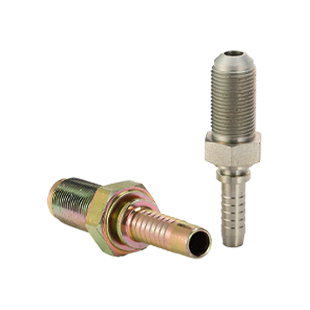

Two piece fitting

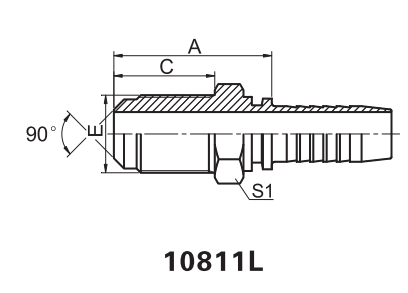

METRIC MALE 90° CONE -10811L.
| 代号PART NO. | 螺纹 ETHREADE | 胶管HOSE BORE | 尺寸 DIMENSIONS | |||||
| 公称内径 DN | 标号 DASH | A | C | S1 | S2 | |||
| 10811L-12-04 | M12X1.5 | 6 | 4 | 46 | 34 | 17 | 17 | |
| 10811L-12-04A | M12X1 | 6 | 4 | 44.5 | 32.5 | 17 | 17 | |
| 10811L-14-04 | M14X1.5 | 6 | 4 | 46 | 34 | 17 | 19 | |
| 10811L-14-06 | M14X1.5 | 10 | 6 | 46.5 | 34 | 17 | 19 | |
| 10811L-16-04 | M116X1.5 | 6 | 4 | 46.5 | 34 | 19 | 22 | |
| 10811L-16-06 | M16X1.5 | 10 | 6 | 46.5 | 34 | 22 | 22 | |
| 10811L-20-06 | M2OX1.5 | 10 | 6 | 57 | 40 | 27 | 27 | |
| 10811L-20-08 | M20X1.5 | 12 | 8 | 57.5 | 40 | 27 | 27 | |
| 10811L-22-08 | M22X1.5 | 12 | 8 | 62.5 | 45 | 27 | 27 | |
Note: In case if you are interested to order hose fitting with locknut.please insert suffx"LN"atterour part No.for epanaple 10811L-12-04LN
