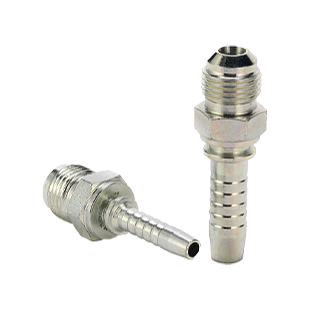

SAE MALE DOUBLE USE FOR 90° CONE SEAT-17811

Download brochure

Model : SAE MALE DOUBLE USE FOR 90° CONE SEAT-17811

Brand：ZMTE

Two piece fitting

SAE MALE DOUBLE USE FOR 90° CONE SEAT-17811

SAE J513

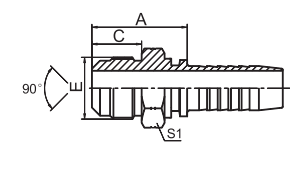

代号PART NO. 螺纹 ETHREAD E 软管HOSE BORE 尺寸 DIMENSIONS
公称内径 DN 标号 DASH A C S2
17811-04-04 7/16" X20 6 4 25.5 12.7 12
17811-05-05 1/2" X20 8 O5 27 14.2 14
17811-06-06 5/8" X18 10 6 28.5 15.7 17
17811-08-08 3/4" X16 12 8 34 19 22
17811-10-10 7/8" X14 16 10 38.5 22.4 24
17811-12-12 1.1/16" X14 20 12 44 25.4 30


Note:

1.For use with braided hoses.

2.If use with spiral hoses,hose fitting series numberis27812-xx-xx.

SAE MALE DOUBLE USE FOR 90° CONE SEAT-17811 SAE MALE DOUBLE USE FOR 90° CONE SEAT-17811 SAE MALE DOUBLE USE FOR 90° CONE SEAT-17811 SAE MALE DOUBLE USE FOR 90° CONE SEAT-17811
